Scan Speak Event

Based on a transmission line floorstanding.

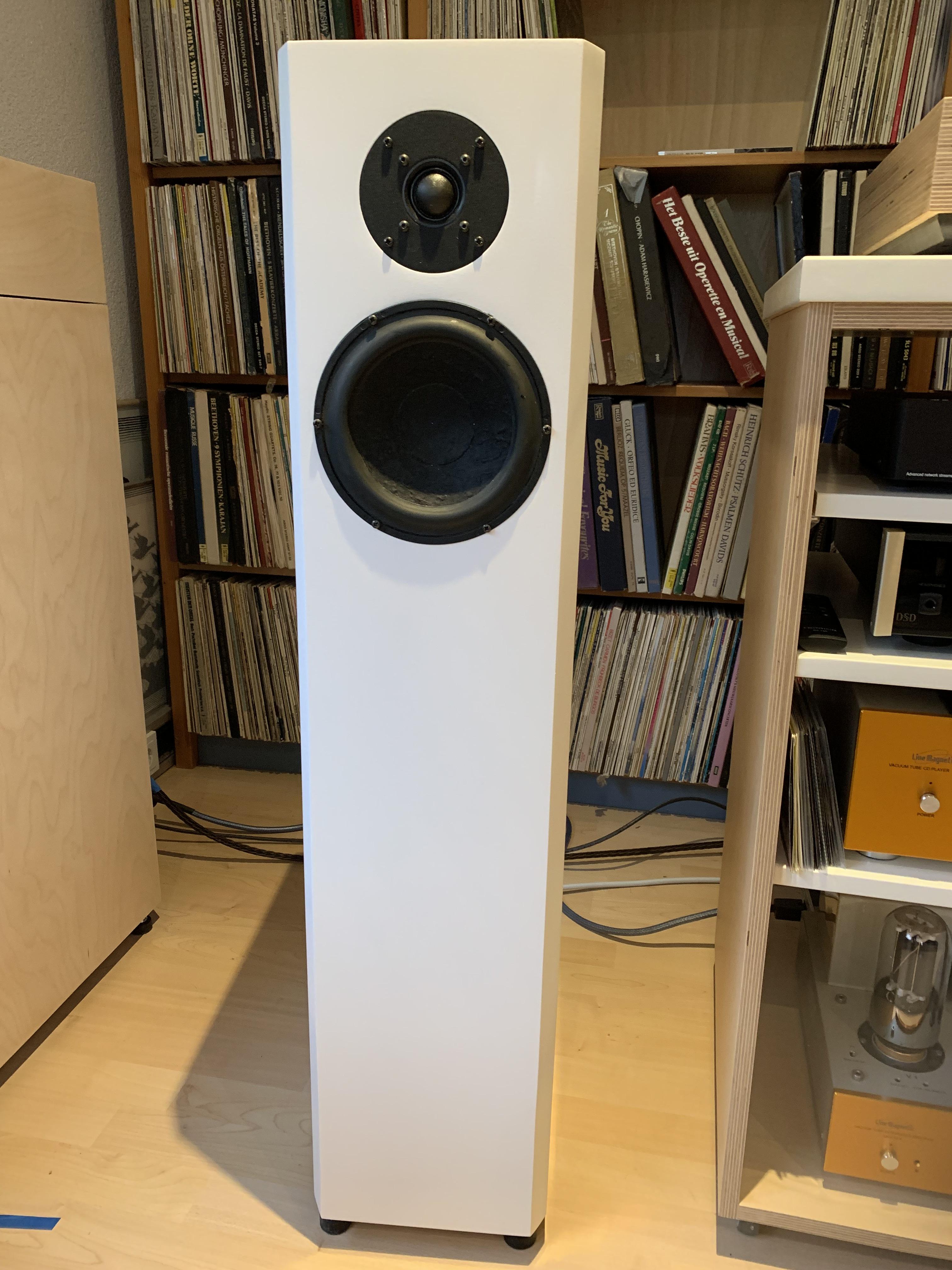

The original design with Scan Speak 18 cm mid woofer. Classic Midwoofer 18W/8535-01 and the Classic Tweeter D2905/930000.

 IMG_6759.jpeg    IMG_6410.jpeg

High-End Two-Way Terminated Line Loudspeaker

A transmission line that sounds exceptionally natural.

This model consists of a slim floorstanding enclosure featuring an 18 cm bass/midrange driver and a woven 28 mm dome tweeter.
The defining feature of this loudspeaker is that a terminated transmission line loads the bass driver.

Sonically, this design delivers:

  • profound bass extension,

  • excellent impulse response, and

  • reduced colouration compared to traditional transmission lines,
    Thanks to the line being folded only once.

This results in a bass reproduction that is deep, controlled, and free from the typical resonant character often associated with more complex folded TL designs.

(Source: Elektuur Loudspeaker Special 9)

Technical Specifications

  • Dimensions (H × W × D):
    100.1 × 22.5 × 33.5 cm

  • Frequency response:
    32 – 30,000 Hz

  • Sensitivity:
    87 dB / W / m

  • Nominal impedance:
    8 ohms

  • Internal volume:
    72 liters

Editorial note

This description captures very well why the Event Transmission Line has remained relevant over time:
It prioritises natural bass extension, impulse accuracy, and low colouration over sheer output or visual spectacle — values that align perfectly with modern high-end DIY loudspeaker design.
